A Guide to Cable Ties

What are cable ties used for?

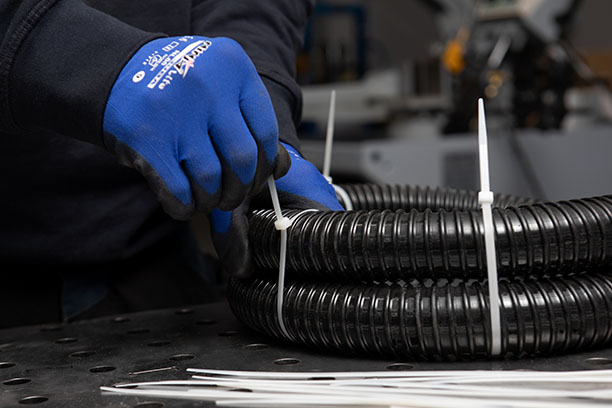

Cable ties are also known as zip ties.  They are fasteners that bundle cables and wires together to keep them organized and prevent damage.  They come in different sizes, lengths, materials and colors.  They different uses of cable ties vary across industries.   One thing all cable ties have in common is they are the most effective way to manage cables.

Cable Tie Types

Standard Cable Ties

• Nylon zip ties
• Zip-tie locking mechanism – self locking
• Usually single use
• Available in UV resistant nylon cable ties and weatherproof cable ties
• Available in different colors for color coding

Heat Stabilized Nylon Cable Ties

• Heat resistant cable ties
• Ideal for applications where heat is generated
• Greater stability properties in harsh environments

Mounting Cable Ties

• Cable tie and mount all in one for fast installation
• Available with different mounting options
• Available with tension wings

Belt Cable Ties

• Flexible design
• Quick release mechanism

Releasable Cable Ties

• Releasable zip ties can be used more than once or reusable
• Can be opened to add additional cables over time
• May be available in different colors

Push Mount Cable Ties

• Constructed with mounting device to avoid need for additional fixings
• Adhesive base or affixed with screw
• Fast mounting process
• More secure fastening
• Snaps into pre-drilled holes

Screw Mount Cable Ties

• Ideal for fastening to either metal or wooden panels
• Can be either screwed or bolted down

Marker Cable Ties

• Standard zip tie that includes a tag for writing on

Stainless Steel Cable Ties

• Withstands high temperatures
• Radiation, vibration and flame resistant

Heavy Duty Strap and Buckle

• Industrial zip ties for heavy-duty applications
• Max tensile strength of 350 lbs.
• Steel teeth on buckle grip the strap permanently
• Buckle is preassembled on one end of the strap
• Heavy-duty zip ties for outdoor use

Double Headed Cable Ties

• Keeps two wire bundles separated
• No need for additional cable ties

Adjustable Cable Straps – Hook and Loop

• Use when a temporary bond is needed
• Can be fastened and released several times
• Ideal for fragile cables
• Reusable

Cable Tie Materials

Nylon Cable Ties

Nylon produces a high-strength zip tie with good thermal and abrasion resistance.   It also resists most fuels and chemicals.  Nylon 6/6 is the most common grade of nylon use for cable ties.  This material meets UL94 V-2 flammability ratings and can operate in temperatures as low as -40° F.  Typically a nylon zip tie melting point is 185° F.  Nylon cable ties can be heat stabilized for continuous or extended exposure to high temperatures of up to 250° F.  The manufacturing process can also produce UV stabilized ties for outdoor use.  For example, the same cable tie can be manufactured for different applications.

Polypropylene

Polypropylene (PE) cable ties are excellent for chemical resistance.  PE resists acids, polyhydric alcohols, neutral salts and basic salts, making it a better choice than nylon. PE has a lower tensile strength than nylon 6/6, but it is more flexible.  Polypropylene can stand up to UV exposure.

Low Density Polyethylene

Low density polyethylene (LDPE) has a high-ductile nature and less than average tensile strength.  As a material for cable ties, it is not commonly used.  The benefits of LDPE is that is stretches and conforms well to surfaces and has excellent chemical resistance to dilute and concentrated acids, alcohols, bases and esters.  It’s often used for ties that are meant to temporarily bundle cables.

Stainless Steel

Stainless steel cable ties provide high tensile strength.  They can also stand extremely high temperatures from -328° F to 1000° F.  There are two types of stainless steel used in cable ties:  304 and 316.  Type 304 is used for general purposes in both indoor and outdoor applications.  Type 316 is used when corrosion is a concern.

Zip Tie Uses

Aerospace

The average passenger airplane includes 124 miles of cables.  This makes excellent cable management critical.  The types of cable ties needed vary.  For small, tight spaces, miniature heat stabilized cable ties are a must.  For hoses and larger cables, heavy duty heat stabilized cable ties are needed.  Push mount cable ties also work well for aerospace and it’s best to go with a heat-stabilized option for thermal endurance.

Automotive

If cable ties are going under the hood, chemical and heat resistance should be the priority.  In addition to standing up to oil, greases and gasoline, cable ties should also withstand harsh environments.  Push mount cable ties made of heat-stabilized nylon 6/6, rated UV95 V-2 and serviceable up to 239° F are recommended.  Stainless steel cable ties also offer excellent resistance to high temperatures and weathering.  Other cable ties for automotive applications include standard cable ties and screw or adhesive mount ties and arrow head cable ties.

Equipment Manufacturing

Industrial generator parts and HVAC components vibrate.  Screw mount cable ties are ideal for indoor applications.   Fir-tree mount cable ties add additional stability against vibration while providing protection against debris.  For outdoor applications, cable ties that can stand up to the weather and a range of temperatures are needed.  Weather resistant cable ties work well.  Heat stabilized cable ties are ideal for performance in extreme cold weather conditions.

Consumer Appliances and Electronics

These devices offer limited work space and require heat resistance.  Arrow head cable ties are an excellent choice as are heat stabilized cable ties.  They are exceptionally strong with the additional benefit of being cost effective.   For temporary bundling of wires and cables, use hook and loop cable ties.

Enclosure and Cabinets

An indoor data cabinet can fall victim to cable spaghetti, which happens when cables become one big mess.  Standard cable ties can prevent this.  For an outdoor utility cabinet or any outdoor cable enclosure, UV resistance is important.  Weather resistant cable ties are an excellent solution.

Construction and Mining

In the construction and mining industries, a range of cable ties are necessary.  Some need to stand up to harsh conditions while others need to handle fragile cables.  For example, secure scaffold netting and sheeting with heavy duty strap and buckle ties, which are perfect for demanding applications.  Type 316 stainless steel cable ties provide corrosion, chemical and high temperature resistance.

How to Remove Cable Ties Without Cutting

A common question is how to remove cable ties without cutting.  You can remove zip ties without cutting if they are single-use, however it will slow down processes to open them.  To open a traditional cable tie:

1. Stick a pin or your fingernail into the locking mechanism.
2. Depending on the locking mechanism, either push down or pull it away from the cable tie ribs or teeth.
3. Slide the tie out.
